Online tool
CALC PRO
Mold Solutions' online cost calculator for injection molded parts. Upload a STEP file and get cycle time, machine selection, packaging and cost per part — no CAD software required.
Intro
CALC PRO is Mold Solutions' online cost calculator for injection molded parts. The application reads a STEP file and determines the part's dimensions, volume and projected area. These geometry values form the basis for the following calculations: cycle time, clamping force, machine selection, packaging, and cost per part. All results can be downloaded as an Excel cost report. No CAD software is required.
How it works
Upload your STEP file
After upload, CALC PRO displays the part in a 3D viewer; dimensions, volume and projected area appear immediately below. Select the material type and grade from the materials database, and enter the wall thickness and number of cavities.
Calculate cycle time, machine and packaging
The cycle time calculation determines injection and cooling time and monitors the maximum shear rate of the selected material. Machine selection checks your machine fleet against clamping force, shot volume, tie-bar spacing and mounting height, and proposes the smallest suitable machine. The packaging module nests the part into the boxes from your own packaging list.
Build the cost breakdown and download the report

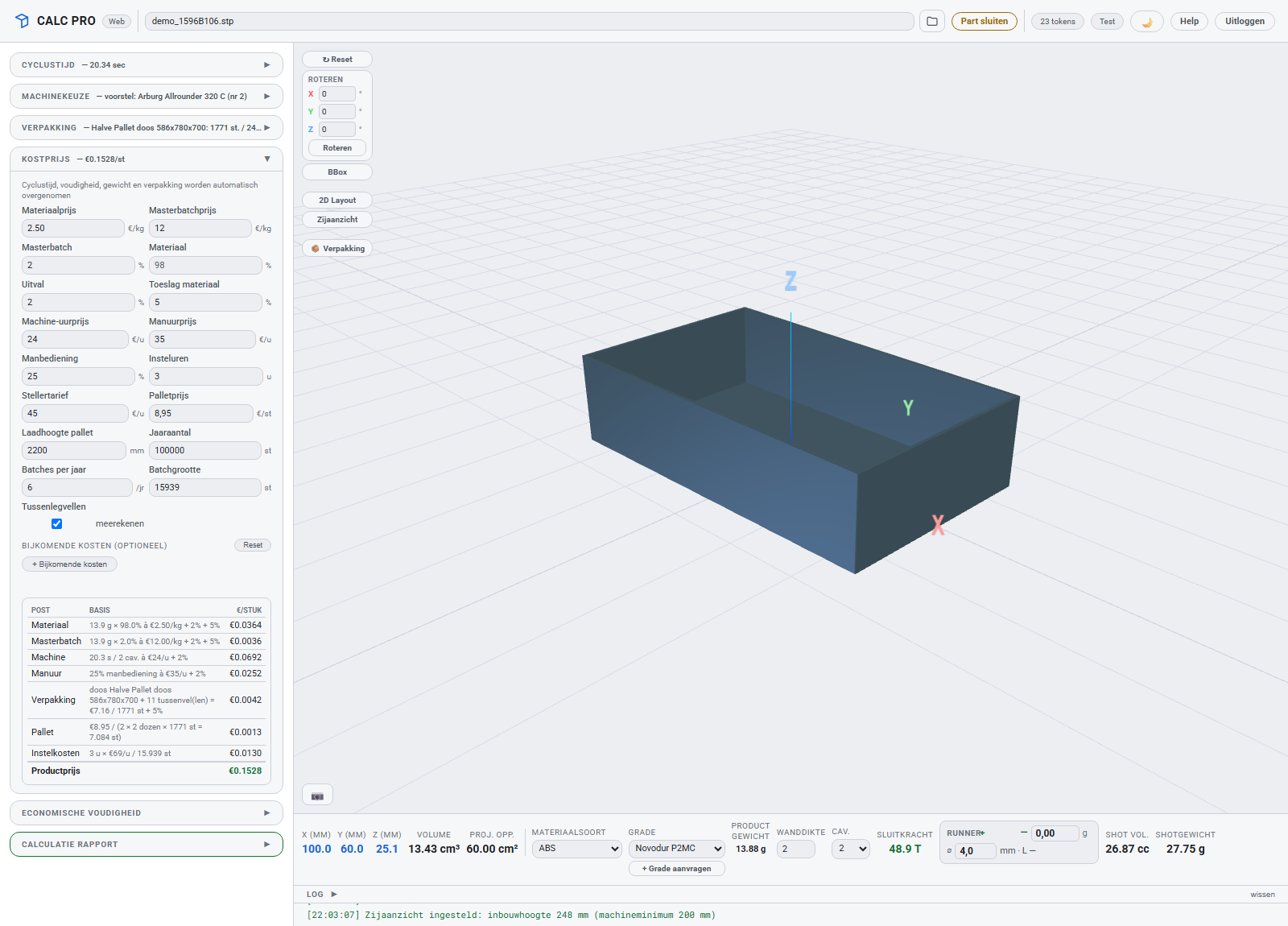

After entering the cost parameters (material price, machine hourly rate, labor rate, setup hours, annual volume), you get the full cost breakdown per part. Up to four mold cavitations can be compared side by side. The Excel report bundles all calculations.
Functionality
| Geometry | Dimensions, volume and projected area, taken directly from the STEP file |
|---|---|
| Cycle time | Injection, cooling and drying time, with shear-rate monitoring per material |
| Packaging | Automatic nesting into your own box assortment, with quantities and weight per box |
| Price per part | Cost breakdown per part: material, machine, labor, setup and packaging |
| Cavitation | Comparison of up to four mold cavitations side by side |
| Your own data | Machine and packaging lists per user, editable in the app or via Excel |
| Report | Excel cost report, downloadable for each calculation |
Data policy
Product models are confidential. CALC PRO therefore never stores the STEP file: it is only read briefly to calculate the geometry and deleted immediately afterward. The 3D view and the cost report exist only for the duration of the session and are cleared when the part is closed, when you log out, and when the browser is closed. Calculation input is never stored.
Who it's for
Injection molders and processors
Pre-costing with your own machine fleet and your own rates.
Product developers and engineers
See the impact of design choices on cycle time and cost, already at the design stage.
Buyers of injection molded parts
An independent, transparent calculation as a reference for quotes.
Access and use
Access is granted on request. Get in touch to request an account, or go straight to the application if you already have one.
